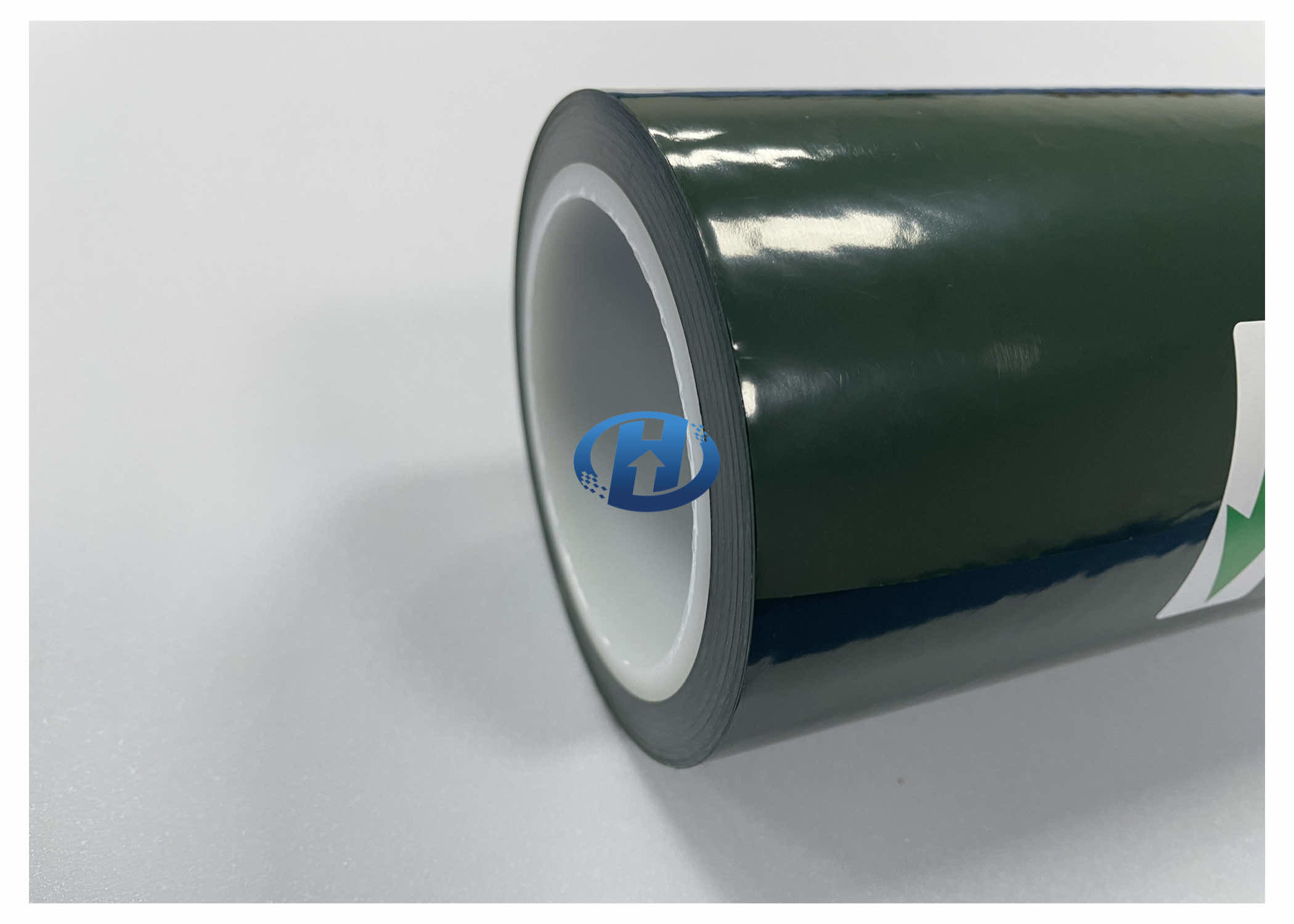

30 μm 40 μm LDPE Film Double Side UV Cured Silicone Coating Film mainly used for tape applications

  • 1
  • 2

Brand Name : HSF

Model Number : 35DG-DS1030-LPE

Place of Origin : China

MOQ : 10000㎡

Payment Terms : T/T, L/C

Supply Ability : 80000kg per week

Delivery Time : within 10 days

Packaging Details : PE wrapping film + Bubble Film + Wooden pallet (Standard 1100mm x 1100mm x 100mm)

Material : Low Density Polyethylene

Color : Dark Green, customized

Halogen free : Yes

Thickness : 35 ± 5μm, customized

Width : 1070 ± 5mm, customized

Core : 3" or 6"

Coating : Double Side UV Cured Silicone Coating

Release Force : Side A 5-10gf, Side B 20-30gf, the ratio of release force can be customized

Subsequent Adhesion Rate : ≥75%

Length : 7000m ± 200m, customized

Splice : ≤1

Sample : A4 sheet for free

Contact Now

LDPE Release Film, D, 35micron, DG, UV Cured, Application of Tape, Sealing strip, No solvent or silicone transfer.

1 Appearance No air bubbles / stains / breakage / impurities Measured
2 Size Width (mm) 1070 -0+5 1071
Thickness (mm) 0.035 ± 0.005 0.036
3 Tensile Strength (Mpa) TD ≥ 15 16
MD ≥ 15 23
4 Color difference Colorimeter △E ＜ 3 ok
5 Elongation @ break (%) TD ≥ 230 882
MD ≥ 230 443
6 Surface Tension (Corona treatment) Dyne Value ≥42 dyne 48
7 Release Force (gf/25mm 20min.Finat 10) Inner 5-10 7
Outer 20-30 24
8 Subsequent Adhesion (%) Inner ≥75 88
Outer ≥75 90
9 Winding direction Customized -
10 Splice No. ≤1 -

LDPE (high pressure low density polyethylene):

Non-toxic, tasteless, odorless, translucent spherical or cylindrical particles, excellent low temperature resistance,

chemical resistance, good extensibility, electrical insulation, but poor wetness, Flammable.

Density: 0.910—0.9408g/cm³, suitable for extrusion, blister, injection molding, vacuum, molding, and conversion

molding and other processing methods. The crystallinity is 55-65%, and the crystal melting point is 108-126 °C.

30 μm 40 μm LDPE Film Double Side UV Cured Silicone Coating Film mainly used for tape applications30 μm 40 μm LDPE Film Double Side UV Cured Silicone Coating Film mainly used for tape applications
